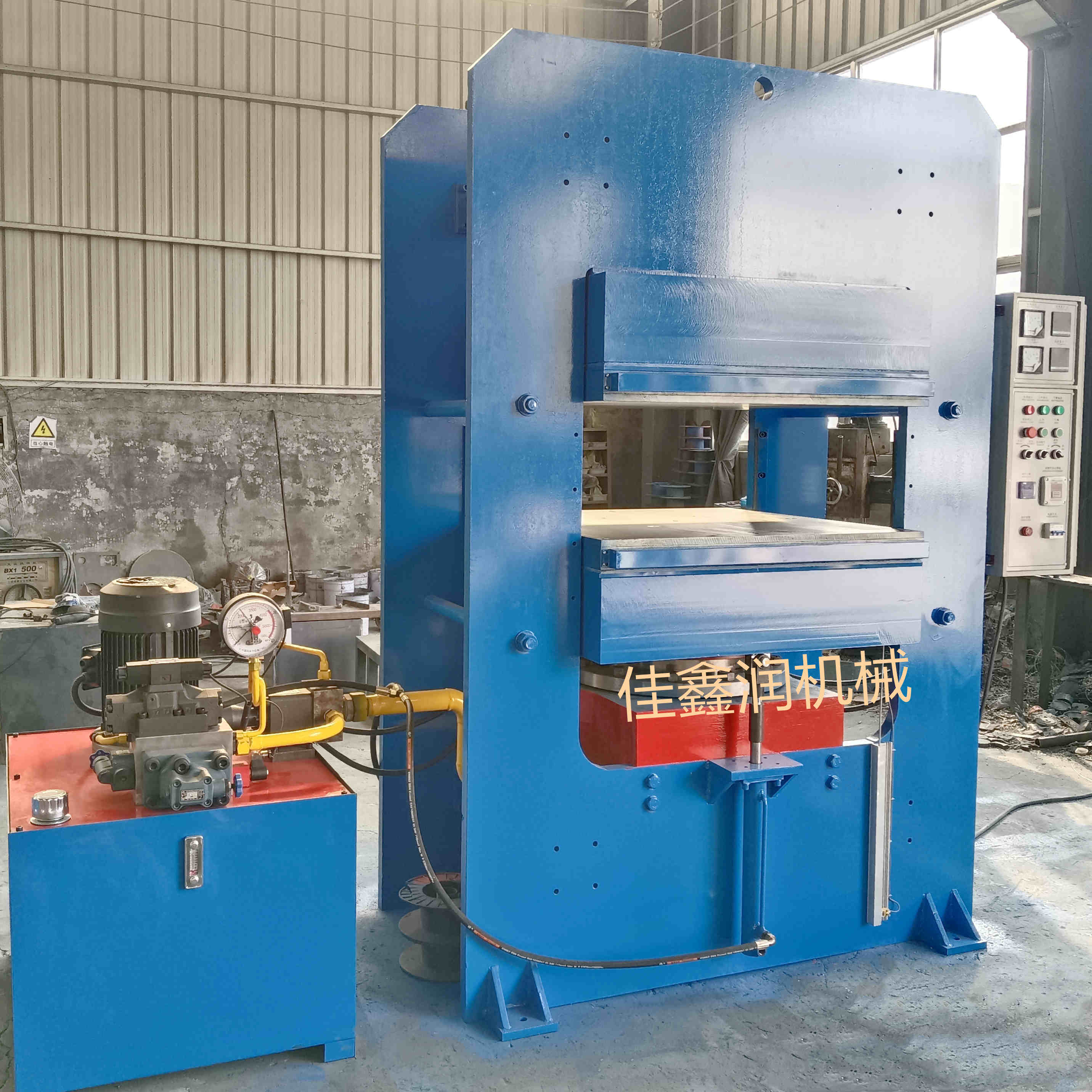

200T Fully Automatic Plate Vulcanizing Press with Forced Mold Openin

Sealing Component Vulcanizing Press

Features and Applications of Plate Vulcanizing Press Features:Simple Structure: Easy to operate and maintain.High Pressure: Ensures high-quality molding of products.Wide Adaptability: Suitable for molding various materials and products.High Efficiency: High level of automation, significantly improving production efficiency. Applications:Rubber Products: Suitable for molding various rubber model and non-model products.Other Materials: Also applicable for molding thermosetting plastics, foam, resin, bakelite, thin metal, building materials, and other model products.

DETAIL

Technical Parameters of 200T Plate Vulcanizing Press with Forced Mold Opening (1m x 1m Working Surface)

Parameter Name /?參數名稱	Parameter Value /?參數值
Model /?產品型號	XLB-D1000x1000x1/2.00MN
Nominal Mold Clamping Force /合模力	2.00MN
Heating Plate Size /?熱板規格	1000x1000mm
Heating Plate Spacing /?熱板間距	300mm
Plunger Stroke /?柱塞行程	300mm
Number of Working Layers /?工作層數	1 layer
Plunger Diameter /?柱塞直徑	φ400mm
Number and Material of Hydraulic Cylinders /?液壓缸數量及材質	1 set, Ductile Iron / 1套球墨鑄鐵
Pressure per Unit Area of Heating Plate /?熱板單位面積壓力	20kg/cm2 (2.0Mpa)
Working Fluid Pressure /?工作液壓力	16Mpa
Motor Power /?電機功率	3.0kw
Heating Method /?加熱方式	Electric Heating /?電加熱
Structure Type /?結構形式	Frame Type /?框架式
Control Method /?控制方式	Relay Automatic Control /?繼電器自動控制
Operating Sequence of the Machine本機動作程序：Automatic Mold Closing /?自動合模-Automatic Exhaust /?自動排氣-Vulcanization Timing /?硫化計時-Alarm at Completion /?到時報警-Automatic Mold Opening (Forced Pull-Down) /?自動開模（強制下拉）
Note: Additional operating sequences and functions can be added according to customer production needs.

Warranty Period for Plate Vulcanizing Press：Warranty Period: The product comes with a three-guarantee policy. Within one year from the date of shipment, if the equipment is damaged or fails to operate normally due to quality issues, our company will provide free repair and spare parts.

Customization Services：Our company can produce rubber plate vulcanizing presses of various specifications according to customer requirements. New and existing customers are welcome to inquire by phone.
