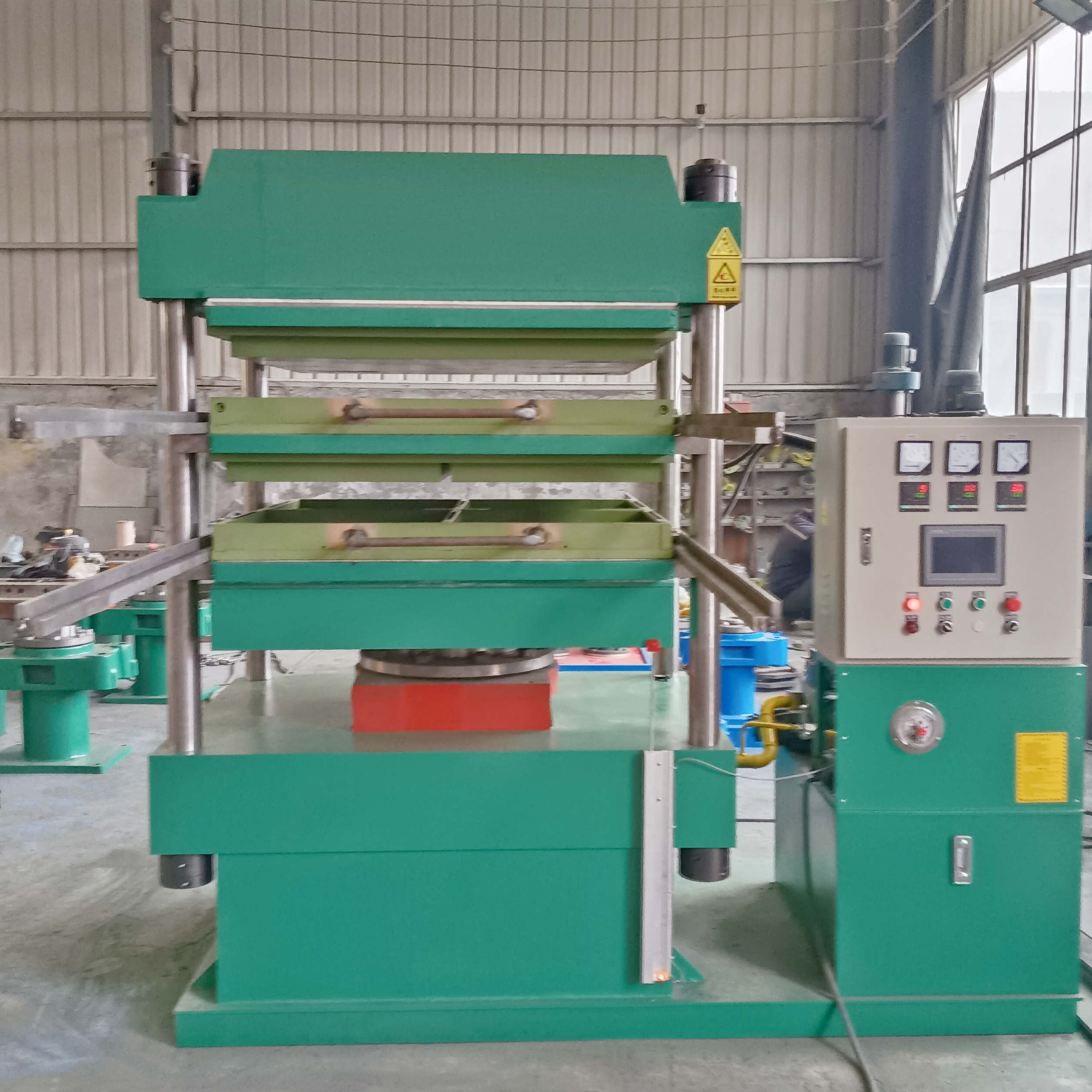

160-ton Four-Column Double-Layer Rubber Powder Tile Vulcanizing Press (Bilateral Push-Pull Mold Type)
I. Equipment Overview
Equipment Name:
160-ton Four-Column Double-Layer Rubber Powder Tile Vulcanizing Press (Bilateral Push-Pull Mold Type)
Description:
This machine is specifically designed for manufacturing rubber powder tiles. Based on the original 160-ton frame-type double-layer tile press, it incorporates a double-layer bidirectional manual push-pull mold function, significantly enhancing automation and production efficiency. This feature enables automatic mold opening/closing and push-pull operations, reducing manual labor, decreasing workload, and improving production safety.
Key Features:
Four-column structure:?High rigidity with strong anti-eccentric load capacity ensures pressing precision
Sufficient pressure:?Capable of producing high-density, high-strength rubber tiles
Double-layer heating plates:?Increases production efficiency and shortens molding cycles
Dedicated temperature control system:?Optimized for rubber material characteristics with precise temperature control for stable product quality
Double-layer bilateral push-pull molds:?Enables automatic mold operation to enhance automation, productivity, and safety while reducing labor intensity
Applications:
For hot press vulcanization molding of rubber powder tiles, suitable for eco-friendly building materials and rubber recycling applications.
Characteristics:
Stable operation with four-column guiding structure
Double-layer design improves efficiency by allowing simultaneous loading, vulcanization, and demolding
Bilateral hydraulic push-pull molds enable quick mold changes and reduce downtime
Automated control for precise adjustment of temperature, pressure, and timing parameters
II. Main Technical Parameters
Item | Specification |
Rated Pressure | 1600kN (160 tons) |
Maximum Working Pressure | 16MPa |
Cylinder Diameter | Φ360mm |
Plunger Stroke | 300mm |
Heating Plate Size | 1100x1100mm (customizable) |
Number of Heating Plates | 2 layers |
Maximum Temperature | Ambient~200°C (electric/oil heating optional) |
Mold Push-Pull Method | PLC automatic control + bilateral manual push-pull |
Push-Pull Stroke | Customizable based on mold size |
Push-Pull Speed | Adjustable constant speed |
Control Method | Relay automatic control |
Note:?Pressure capacity, worktable size, and heating methods can be adjusted according to customer requirements.
